Abrasive continuous supply

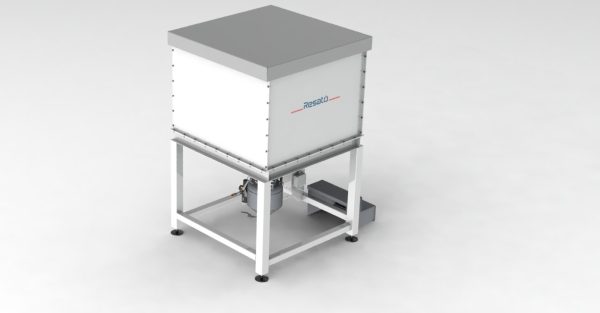

The abrasive continuous supply system provides an abrasive flow to cutting machines without stopping the cutting process while refilling the abrasive pressure vessel.

The vessel contains an automatically controlled pressure system to fill-up a small pressure vessel to transport the abrasive to the cutting machine. A large abrasive silo stores the abrasive and can be replenished at any time without interfering with the cutting process.



Technical specification:

  • Replenishment Open cover and empty big bag in silo
  • Total capacity 2300 kg
  • Refill capacity 2000 kg (1000 L)
  • Accessibility Easy and ergonomic access with use of step-up
  • Minimum ceiling height 4 m
  • Empty weight 325 kg
  • Maximum weight 2625 kg
  • Floor load 4 supports Ø 120 mm, 6563 N/support, 0.6 N/mm2
  • WxDxH 1225 mm x 1225 mm x 1880 mm
  • Surrounding free space: Back 200 mm, left or right 600 mm, front is fork truck dependent
Category Tag:

Description

On request, the ABR-CS with control cabinet can supply abrasive up to three machines.

  • Continuous abrasive flow
  • Able to refill abrasive during the cutting process
  • Monitoring abrasive level

Silo Low-Level message
To detect sufficient stored abrasive in the storage silo, a second sensor will signal the cutting machine to report a ‘Silo Low-Level’ message. This message will be the trigger to replenish the storage silo before running completely out of abrasive.

For more information on abrasive management, you can visit our section here.
